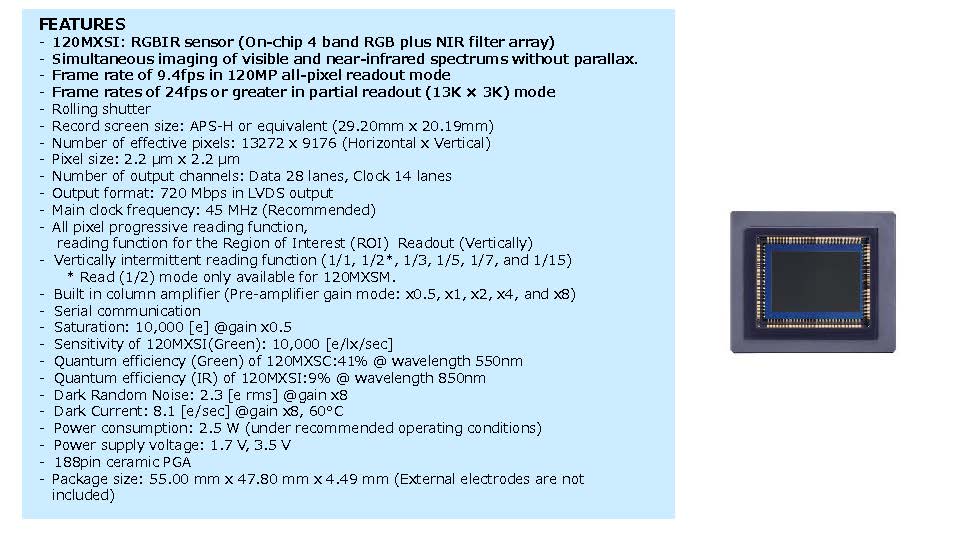

FEATURES

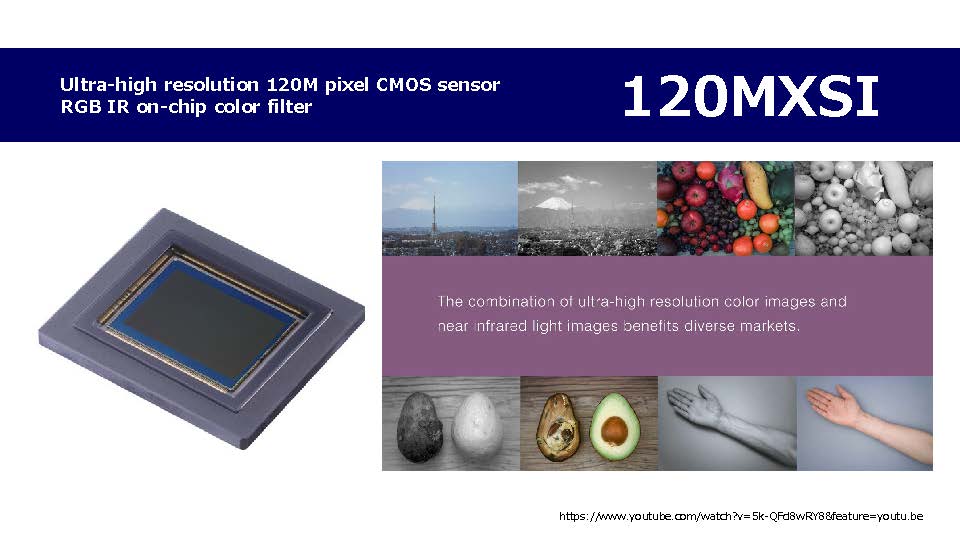

-120MXSI: RGBIR sensor (On-chip 4 band RGB plus NIR filter array)

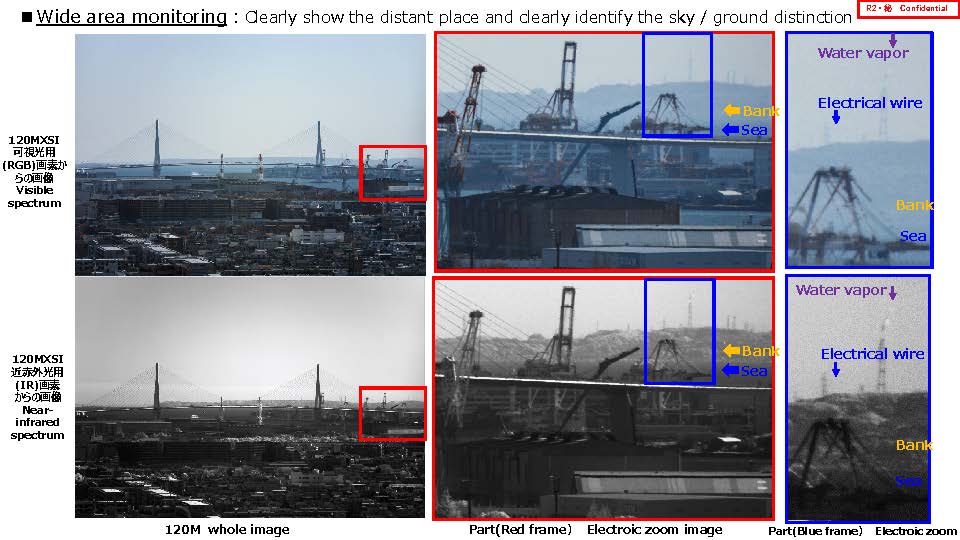

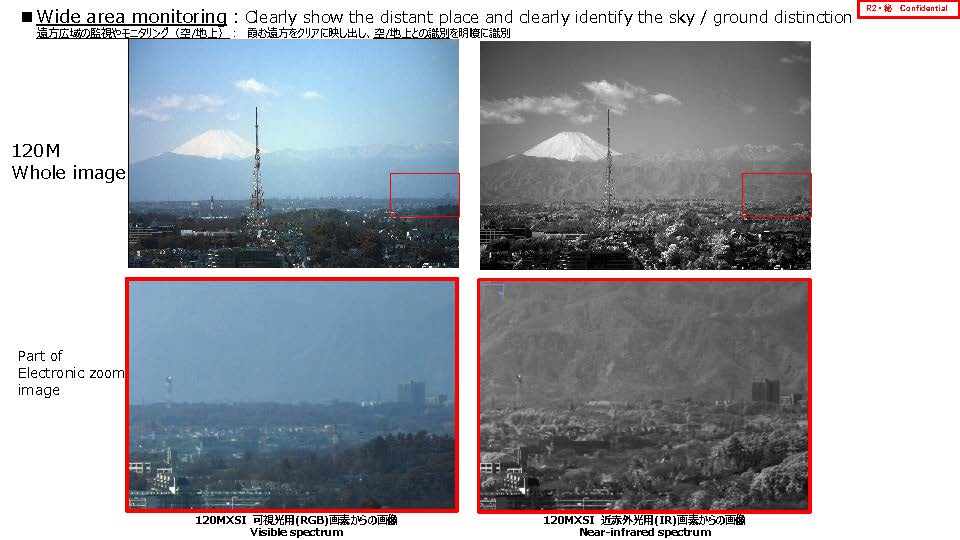

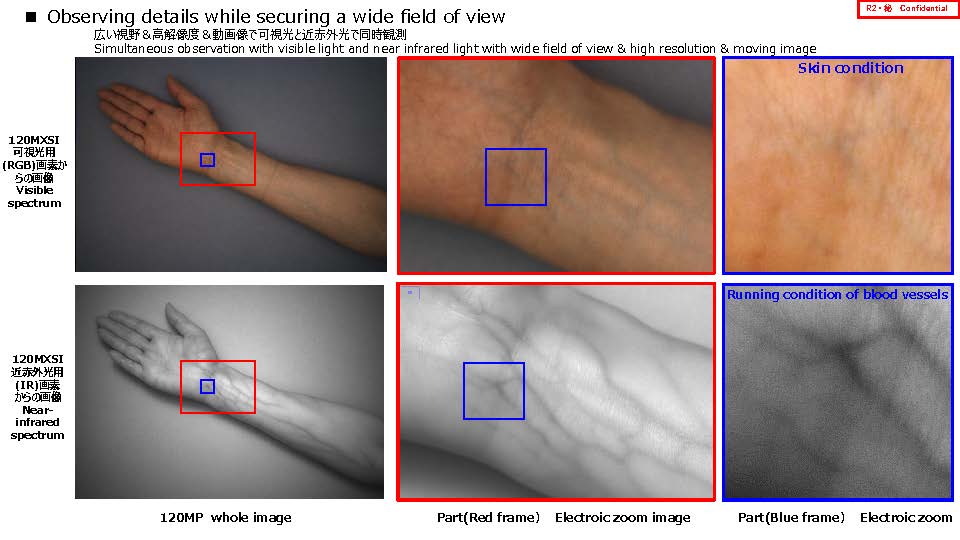

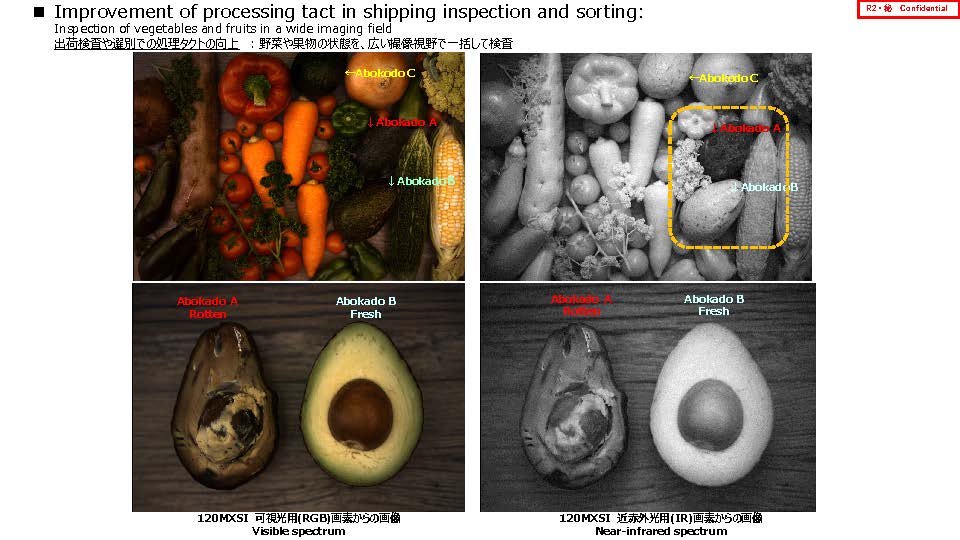

-Simultaneous imaging of visible and near-infrared spectrums without parallax.
-Frame rate of 9.4fps in 120MP all-pixel readout mode

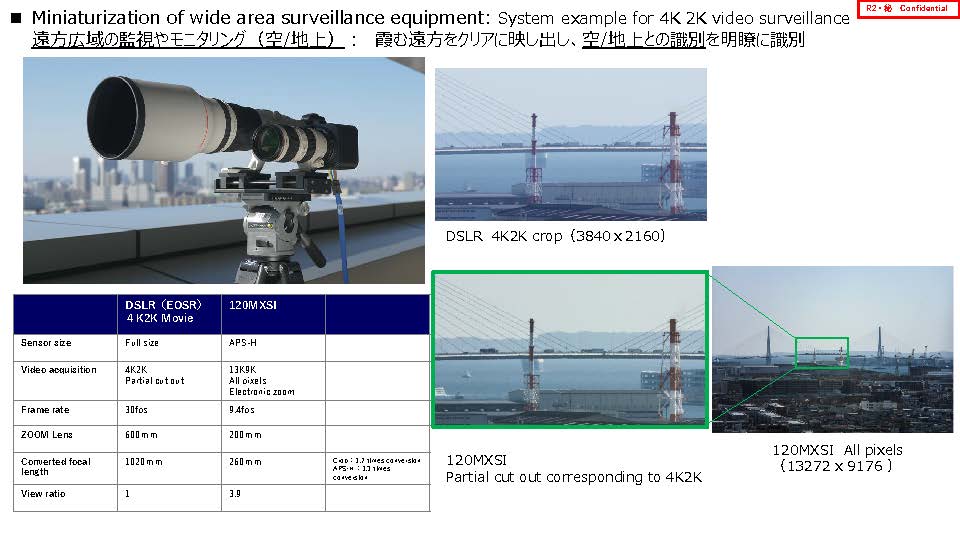

-Frame rates of 24fps or greater in partial readout (13K ×3K) mode
-Rolling shutter
-Record screen size: APS-H or equivalent (29.20mm x 20.19mm)
-Number of effective pixels: 13272 x 9176 (Horizontal x Vertical)
-Pixel size: 2.2 μm x 2.2 μm
-Number of output channels: Data 28 lanes, Clock 14 lanes
-Output format: 720 Mbps in LVDS output
-Main clock frequency: 45 MHz (Recommended)
-All pixel progressive reading function,
reading function for the Region of Interest (ROI)Readout (Vertically)
-Vertically intermittent reading function (1/1, 1/2*, 1/3, 1/5, 1/7, and 1/15)
* Read (1/2) mode only available for 120MXSM.
-Built in column amplifier (Pre-amplifier gain mode: x0.5, x1, x2, x4, and x8)
-Serial communication
-Saturation: 10,000 [e] @gain x0.5
-Sensitivity of 120MXSI(Green): 10,000 [e/lx/sec]
-Quantum efficiency (Green) of 120MXSC:41% @ wavelength 550nm
-Quantum efficiency (IR) of 120MXSI:9% @ wavelength 850nm
-Dark Random Noise: 2.3 [e rms] @gain x8
-Dark Current: 8.1 [e/sec] @gain x8, 60°C
-Power consumption: 2.5 W (under recommended operating conditions)
-Power supply voltage: 1.7 V, 3.5 V
-188pin ceramic PGA
-Package size: 55.00 mm x 47.80 mm x 4.49 mm (External electrodes are not included)
